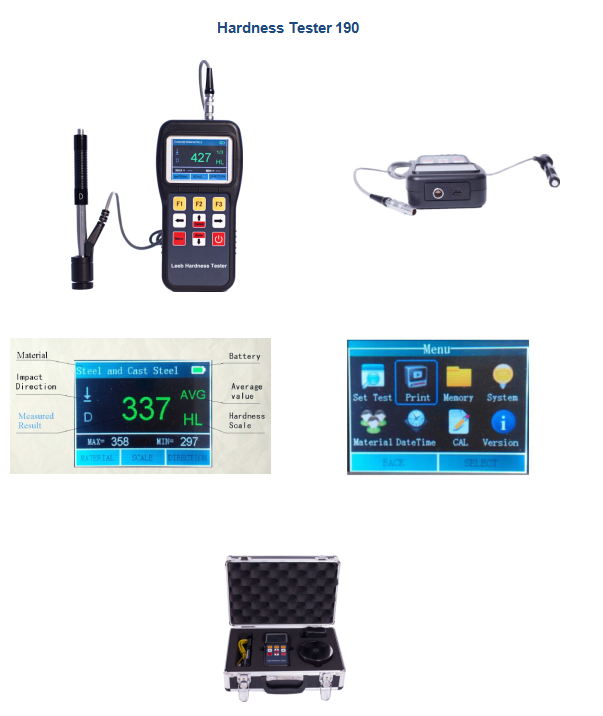

Hardness Tester 190
Function & Feature
l New design, test all metal materials with high precision.
l Testing materials can be user-defined.
l Easily switch to all hardness parameters (HL、HB、HRB、HRC、HRA、HV、HS).
l Large LCD color screen with WINDOWS menu operation.
l High brightness LED back-light, convenient in the dark.
l Automatically identify the 7 types of impact devices, replacing without re-calibration.
l Limit alarm setting if measuring data is beyond the limit.
l Low power consumption: Auto sleep, automatic shutdown function of saving energy.
l Rechargeable Li-ion battery, standby time 150 hours.
Measuring Materials:
l All Metals. The measuring materials can be user-defined.
l Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.
Technical Specification
Model | 190 |
Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
Hardness parameter | HL, HRC,HRB, HRA,HS,HB,HV |
Accuracy | Within±0.3%(HLD=800) |
Display | Color LCD with back-light |
Memory | 600 groups |
PC Connection | Available |
Printer | No |
Battery | Rechargeable Lithium Battery |
Operating Temperature | -20℃~+60℃ |
Dimensions | 129×68×25mm |
Shell | Plastic |
Impact Device Type | D,DC,DL,D+15,G,C,E |
Weight | 230g |
Standard Delivery | Main unit,Impact Device type D,Operation manual,Power charger,Small supporting ring,Cleaning brush, Certificate, USB cable,calibration block. |
Optional Accessories | Impact DC,D+15,DL,G,C,E, Shaped support ring |
