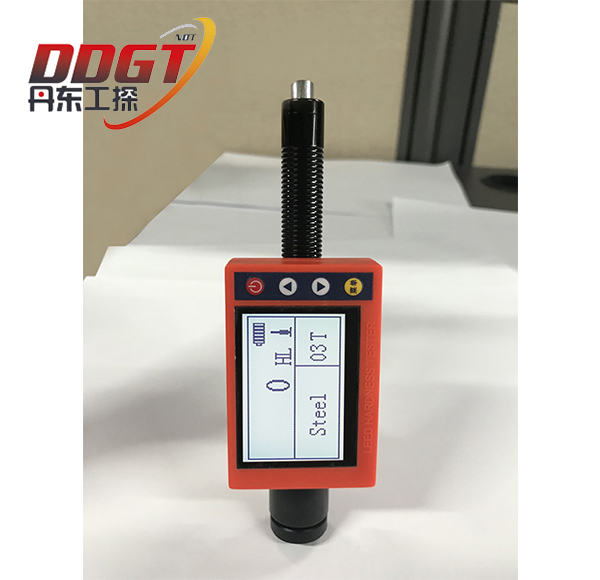

Leeb Hardness Tester 180D/G/DL
Features:
l Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL
l Direct calibration on HL,HRC,HB.
l Large LCD screen with back-light, showing all functions and parameters
l Upper and lower limit and sound alarm
l Conversion to tensile strength (U.T.S)
Measuring Materials:
l Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.
Model | Leeb180D | Leeb180G | Leeb180DL |
Calibration | Direct calibration on HL,HRC,HB. |
Main application | Normal Test | For casting and forging of large,thick heavy and surface is rough | For slender, narrow or long holes |
Measuring Range | (150-960)HLD,(17.1～68.5)HRC,(77-651)HB,(83～976)HV,(26.4～99.5)HS, (59.6～99.6)HRB |
Accuracy | ±6HLD（HLD=760） |
Indication repeatability | 6HLD（HLD=760） |
Operation Direction | 360° |
Hardness parameter | HL、HRA、HRC、HRB、HB、 HV、HS、HSD |
Fixed impact device | D | G | DL |
PC software | Yes |
Storage | 350 groups |
Statistical | Yes |
Battery | Rechargeable Lithium battery 3.7V/300mA |
Dimension | 150*40*45mm | 255*45*45mm | 210*40*45mm |
Weight | 110g | 260g | 130g |
Standard Delivery | Main body,Operation manual,Power adapter,Small supporting ring,Cleaning brush,Calibration block,Certificate. |
Optional | Shaped support ring、Calibration block、PC software |
