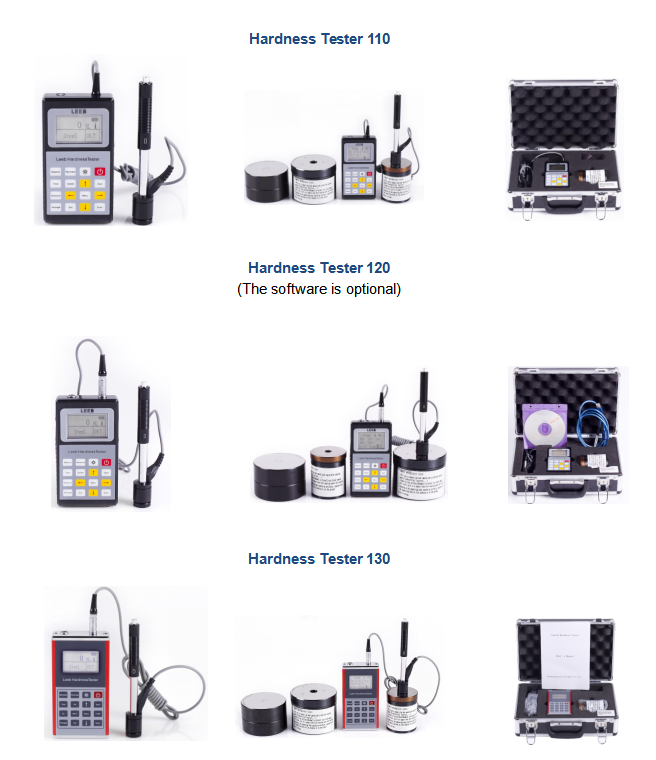

Hardness Tester Leeb110/120/130
Functions & Features:
l English system, convenient and easy for operation.
l Available hardness standards: HL,HRB,HRC,HB,HV,HS. Easily switch to different standards.
l Can be calibrated by HL,HRC,HB.
l Automatically identify the 8 types of impact devices, replacing without re-calibration. ( except Leeb110)
l Small, portable, and accurate. Suitable for harsh operating environment, anti vibration, shock and electromagnetic interference.
l With bright LED back-light, operating easily in the dark.
l Low power consumption: Auto sleep, automatic shutdown function of saving energy.
l Ordinary alkaline battery, standby time 150 hours.
Measuring Materials:
l Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
Technical Specification
Model | 110 | 120 | 130 |
Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
Hardness parameter | HL, HRC,HRB, HS,HB,HV |
Accuracy | Within±0.5%(HLD=800) |
Display | LCD with back-light |
Memory | 1250 groups |
PC Connection | No | Available |
Printer | No |
Battery | 2 AAA |
Operating Temperature | -20℃~+60℃ |
Dimensions | 129×68×25mm | 130×70×25mm |
Shell | Plastic | Metal |
Impact Device Type | Fixed D | D,DC,DL,D+15,G,C,E |
Weight | 230g | 240g | 300g |
Standard Delivery | Main unit,Impact Device type D,Operation manual, Power adapter,Small supporting ring,Cleaning brush, Calibration block,Certificate. |
Optional Accessories | Impact DC,D+15,DL,G,C,E（leeb120),Shaped support ring,Software |
