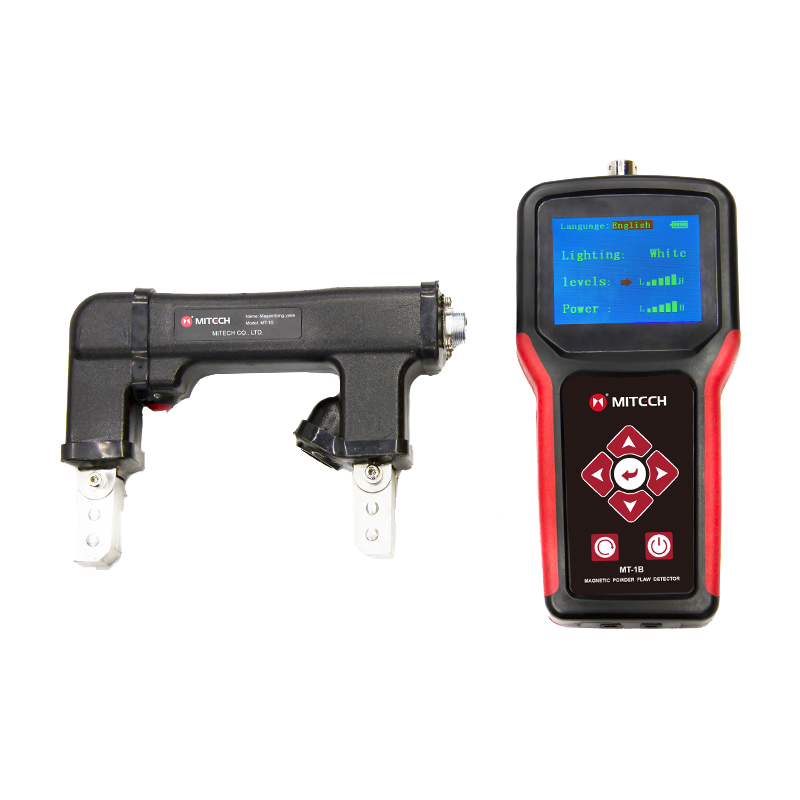

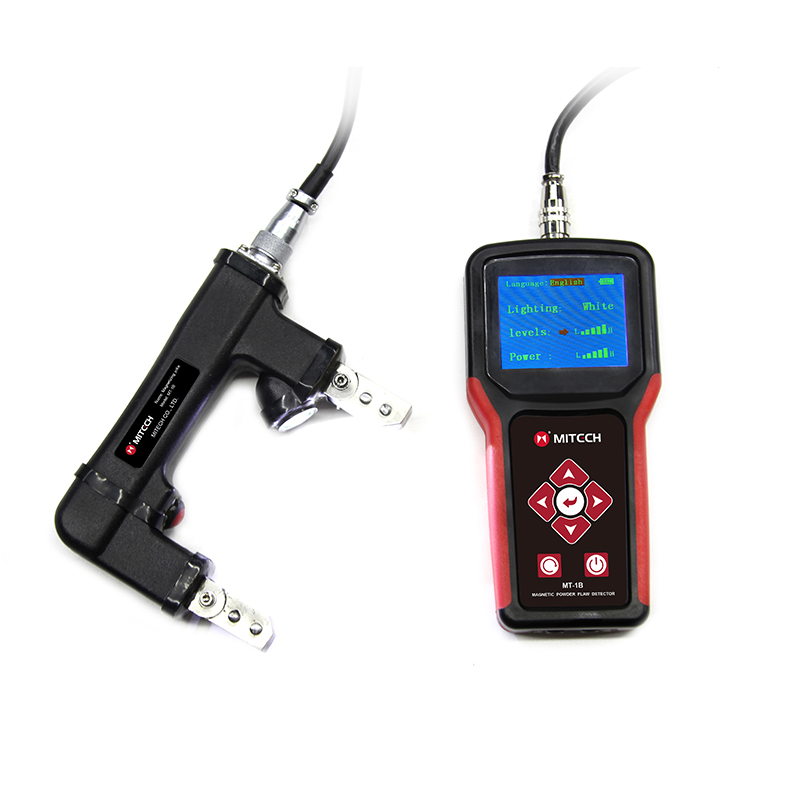

MT-1B Digital Portable Magnetic Flaw Detector
Overview
MT-1B magnetic particle flaw detector adapts high-capacity lithium battery pack, converse DC to AC through variable-frequency, providing magnetic powder flaw detector with magnetic power supply. With low power consumption, it can continuous work more than four hour after charging. It especially suits for working in the wild and aerial area.
Technical Parameters
Lifting | ≥45N(no less than 5kg) |
Complex sensitivity | clearly show the artificial notch of type A 15/100 standard specimen |
Light | white light |
Camera | No |
Working voltage | DC15V-21V |
Waveform | alternative current |
Pulse amplitude | 42V |
Unit weight | 0.75kg(including battery) |
Display dimension | 3.5inch |
Electromagnetic yoke polar distance | 75-200mm |
Electromagnetic yoke weight | 1.5kg |
Lithium battery voltage | 18V |
Lithium battery capacity | 8400mAh |
Limited voltage of lithium battery | 21V |
Charge time | 3-4h |
Continuous working time | 3-4h |
Dimensions | 100mm*204mm*36mm |
Features
l Portable high-capacity lithium battery pack without limitation of 220V power supply. With low power consumption and small volume, charging either online or offline. It especially suits for working in the wild and aerial area. l
l Adjustable illumination brightness and working power can meet different testing demand and save the setting.
l New power supply can enhance the testing depth and sensitivity.
l Pulse power supply can continuous work without chill time.
l All traditional advantages can test fast, clearly and accurately.
l Adjustable brightness, power and range can meet different demand.

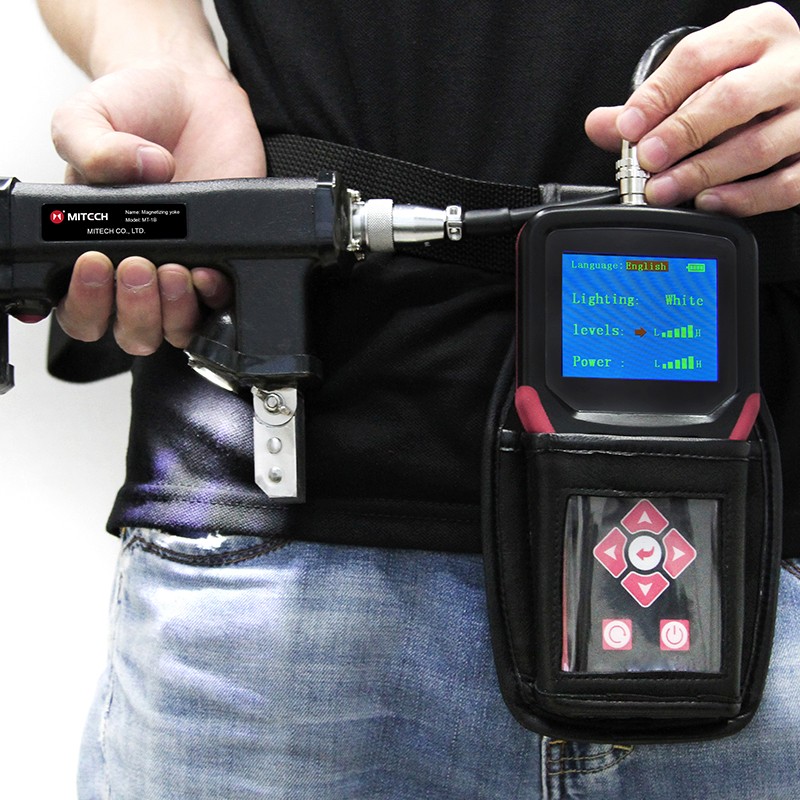

l Small size with equipped bag can improve working efficiency.
Working Principle
Put the workpiece into high-intensity magnetic field, connect electric to make it magnetized, if there are flaws (crack,slag) in or near the surface, there will be a leakage around the flaws. Put good quality magnetic powder(usually the magnetic iron oxide powder)on the object, magnetic powder will gather together near the leaked magnetic field, piled up to form visible traces of magnetic powder. In the proper light, we can see the marks and judge the position, size, shape and degree of the flaws.
Configuration
| No. | Parts name | QTY |
|
Standard config | 1 | Main unit | 1 |
|
2 | Electromagnetic yoke | 1 |
|
3 | Electromagnetic yoke line | 1 |
|
4 | Charger | 1 |
|
5 | Detection management system CD | 1 |
|
6 | USB cable line | 1 |
|
7 | Waist pack |
|
|
8 | Attached files |
|
|
